External Insulation to Door Threshold [Version ID #67]
Detail summary

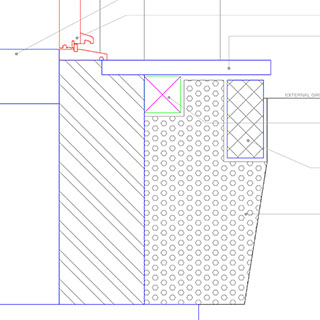

Detail for insulating below ground at an existing retained door threshold with an existing concrete (or similar) stone step from external ground level.
Technical description
Retaining existing door, below ground insulation, new concrete flag step and door step support installed as per drawing.
Parts list
-
Recycled plastic threshold support
Recycled plastic lumber. \ Thickness as detail. Depth as detail. Width as door threshold
British Plastics. \ http://www.britishrecycledplastic.co.uk/our-products/recycled-plastic-lumber-2
-
Concrete Flag paving to form threshold step
Smooth finish. Size to suit step/threshold. Jointing as per detail. colour as existing (where present)
Contractors choice.
Revisions
-
Admin - 2015-04-29 08:51:11
Formatting amendments. DWG file uploaded.
| -
Admin - 2015-04-22 14:24:33
Pdf detail file updated to include parts list codes.
| -
Admin - 2015-03-23 10:20:09
Introduction revised to remove errors. Technical description updated with links to approved docs, parts list revised with links.
| -
Admin - 2015-03-13 17:52:00
Technical description updated. Parts list revised.
| -
Admin - 2015-03-11 17:35:20
Version 5. Parts listed updated with codes and additional parts information.
| -
Admin - 2015-03-11 16:54:18
Version 4. Title update. Technical description updated and intro revised with additional detail. Preview image and pdf updated with new line type colours and lineweights.
| -
Admin - 2015-03-03 13:38:35 [Displayed version]
Version 2. Parts list, title and description updated.
| -
Admin - 2015-02-27 12:12:05
Version 2- .dwg file updated
| -
Admin - 2015-02-26 13:35:08
First Version
|
