EWI to Door Threshold [Version ID #151]
Detail summary
Detail for insulating below ground where an existing door, with a step, is to be retained. For use where floor void inaccessible by usual means and is not possible to lift whole floor.
Using a granular insulating infill below an existing concrete stone step increases the thermal efficiency of the building thermal envelope, and prevents cold bridging through the existing door threshold.
Technical description

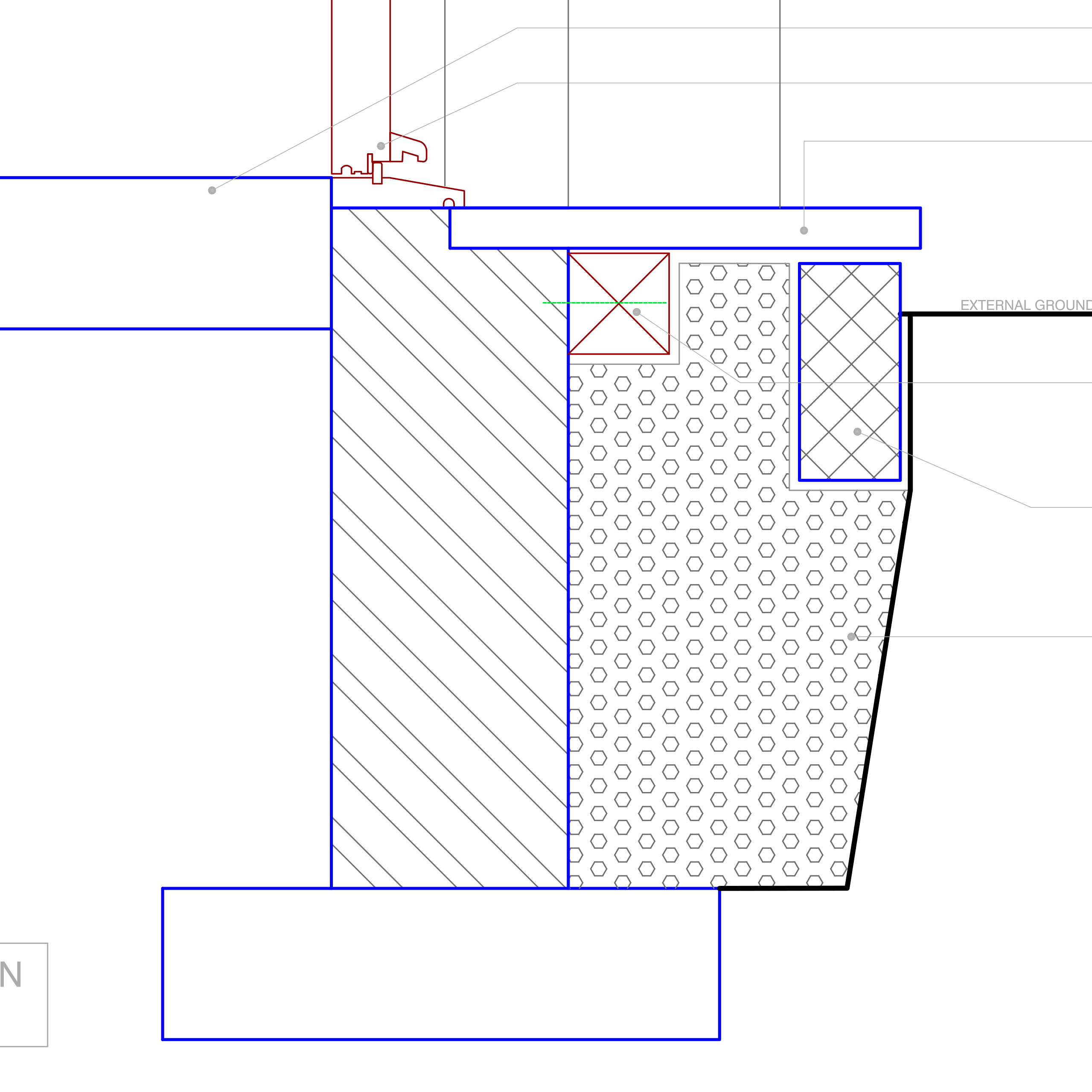

Section detail. EWI below ground to retained existing door, new concrete flag step and door step support.
Please refer to Approved document M (access).
Granular insulation infill to minimum 300mm from level of internal floor finish to prevent thermal bridging.
Parts list
-
Recycled plastic threshold support
Recycled plastic lumber. \ Thickness as detail. Depth as detail. Width as door threshold
British Plastics. \ http://www.britishrecycledplastic.co.uk/our-products/recycled-plastic-lumber-2
-
Concrete Flag paving to form threshold step
Smooth finish. Size to suit step/threshold. Jointing as per detail. colour as existing (where present)
Contractors choice.
Revisions
-
Admin - 2015-04-29 08:51:11
Formatting amendments. DWG file uploaded.
| -
Admin - 2015-04-22 14:24:33
Pdf detail file updated to include parts list codes.
| -
Admin - 2015-03-23 10:20:09
Introduction revised to remove errors. Technical description updated with links to approved docs, parts list revised with links.
| -
Admin - 2015-03-13 17:52:00
Technical description updated. Parts list revised.
| -
Admin - 2015-03-11 17:35:20
Version 5. Parts listed updated with codes and additional parts information.
| -
Admin - 2015-03-11 16:54:18 [Displayed version]
Version 4. Title update. Technical description updated and intro revised with additional detail. Preview image and pdf updated with new line type colours and lineweights.
| -
Admin - 2015-03-03 13:38:35
Version 2. Parts list, title and description updated.
| -
Admin - 2015-02-27 12:12:05
Version 2- .dwg file updated
| -
Admin - 2015-02-26 13:35:08
First Version
|
