EWI to Door Threshold [Version ID #299]
Detail summary
Detail for external insulation below ground, where an existing door with step access is to be retained. For use where the existing internal floor void is inaccessible by usual means, and is not possible to lift the whole internal floor. Using a granular insulating infill below an existing concrete stone step increases the thermal efficiency of the building envelope, and reduces cold bridging through the existing door threshold.
Technical description

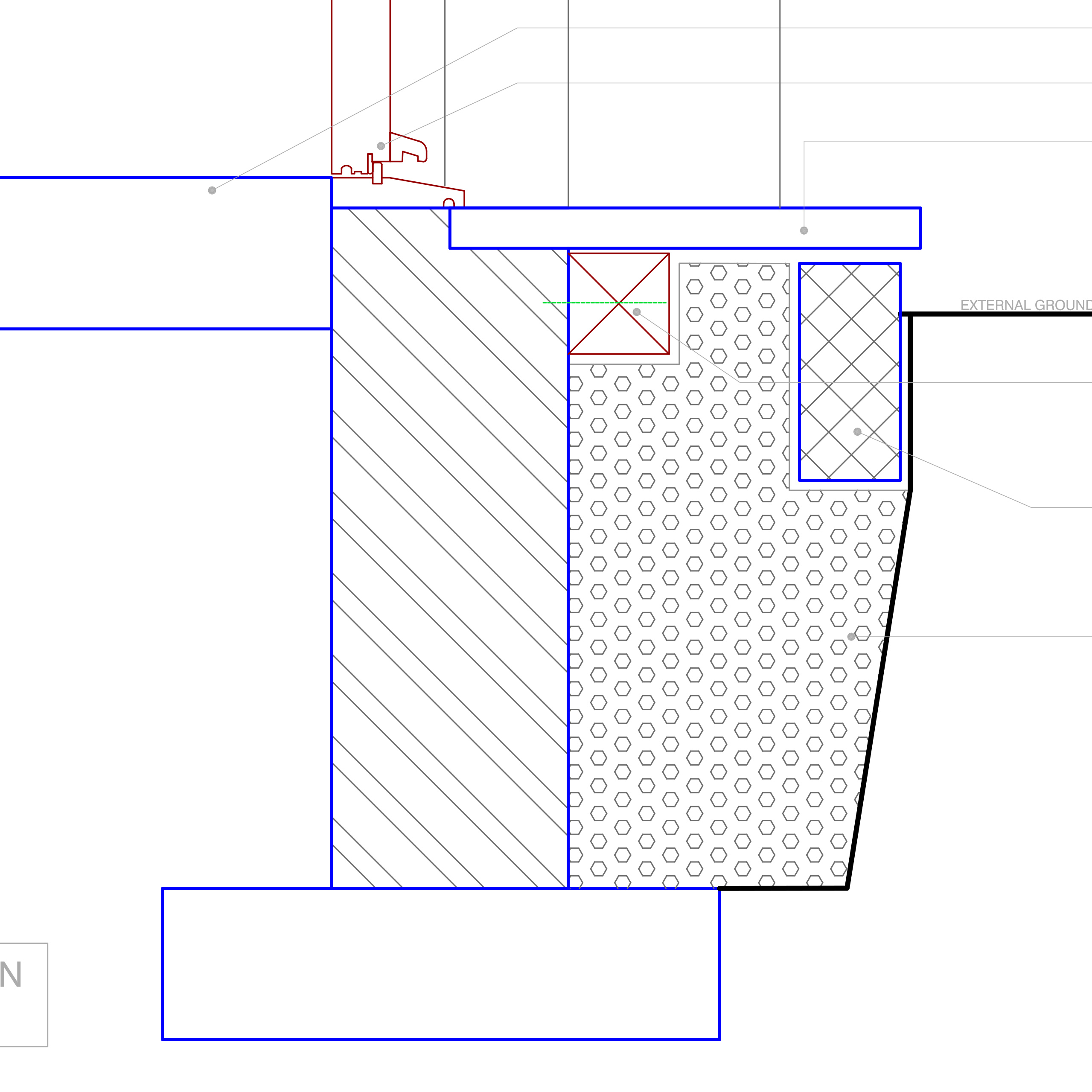

Section detail. External insulation below ground to wall with retained existing door. New concrete flag step and door step support to existing.
Reference Specification:
Please refer to Approved document M (access) for guidance on door thresholds and step heights from external ground level. Drainage below ground guidance can be found in Approved documents C, section 3; and Document H, sections 2 and 3.
Perimeter insulation suitable for below ground use and drainage layer. To BS EN 13164
Blockwork: Aggregate concrete bricks and blocks: To BS EN 771-3. Autoclaved aerated concrete (AAC) blocks: To BS EN 771-4.
Notes:
Granular insulation infill to minimum 300mm from level of internal floor finish to prevent thermal bridging.
Care should be taken to ensure air-tightness. Seal all service penetrations through EWI and existing wall. Lap and tape all membranes around edges of EWI system.
All insulation to be continuous to avoid thermal bridging.
Preparation of external wall: Remove any existing loose material and prepare in accordance with manufacturer's requirements.
Any alterations to drainage and other fixtures, or work to prepare the substrate, to be agreed with contract administrator prior to work being undertaken. Prior to start on site inspect the form and condition of the structural substrate; institute repairs and/ or additional works necessary to make the substrate suitable to receive EWI system.
Parts list
-
Concrete Flag paving to form threshold step [FL03a]
- Finish: Smooth.
- Size: Size to suit step/threshold.
- Colour: Natural/To suit existing (where present)
- Jointing/bond: as per detail.
Contractor's choice. Use reclaimed paving where possible.
-
Recycled plastic threshold support [FAB EW06b]
Recycled plastic lumber.
- Thickness: As detail.
- Depth: as detail.
- Width: as door threshold.
British Plastics. Tel: 01422 88 57 61 Web: http://www.britishrecycledplastic.co.uk/
Product Reference: Recycled plastic lumber -
Lightweight Aggregate Insulation bounding layer [FL03]
Lightweight recycled glass aggregate.
- Thermal conductivity: 0.08W/mk
- Depth: As perimeter insulation. (min 200mm)
- Width: 200mm.
- Installation: Pour insulation in through the hatches and rake across the floor from above to achieve an even spread with minimum depth 200mm -taking care not to damage underfloor gas pipes and services. 50mm min. air gap to underside of joists. Ensure vents are not covered.
- Misapor- Web: http://www.misapor.ch/EN/Home.html
- TECHNOpor- Web: http://www.ecostrata.co.uk/technopor.html
- GLAPOR - Web: http://www.glapor.de/home_en.php?wpf_language=en
-
Thermalite Blockwork
Used as shutter for grouted aggregate insulation, and to support flag step. Size: as required/as drawing. No: as required/as drawing.
Contractor's choice.
