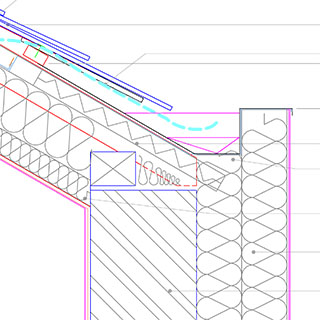

EWI to clipped eaves with room in roof. [Version ID #63]
Detail summary
External wall insulation to a clipped eave detail, where roof insulation is fitted between the roof rafters to form a pitched internal ceiling in roof.
Technical description
Installation of new EWI, cut to fit eaves insulation and form gutter parapet where insulation to roof installed to rafters. New membranes.
Parts list
-
Breather Membrane/ Roof-underlay
Installation: Sealed to insulation to eaves and dressed to drainage point at the end of each run of guttering to allow water to exit construction.
Manufacturer: Green Building Store / Product reference: Solitex UM
-
Insulation Boards Or Batts Fitted Between Rafters
Formaldehyde Free Glass mineral wool semi rigid batts friction fitted between rafters. / Thermal Conductivity: 0.032W/mK / GWP : 0 / Thickness: 35 mm less than rafter depth. / Width: To suit rafter spacing.
Manufacturer: Knauf. / Product Reference: DriTherm Cavity Slabs. / www.knaufinsulation.co.uk
-
Insulated Dry-Lining Board
Type: Phenolic foam backed plasterboard. / Thermal Conductivity : 0.020W/mK. / GWP : <5. / Insulation thickness: As required to meet target U-value (80mm where 35-75mm mineral wool insulation, 60mm where 75-100mm mineral wool insulation, 50mm where 100mm + mineral wool insulation). / Thickness: 12.5mm. / Vapour Control: Integral Vapour Control Layer - ensure all joints between sheets detailed and taped to minimise vapour transmission using vapour-tight tape.
Manufacturer: Kingspan Insulation Ltd. / Product reference: Kooltherm® K18 Insulated Plasterboard. / www.kingspaninsulation.co.uk
-
Insulation to Eaves (rigid)
Phenolic Foam. / Thermal conductivity: 0.023W/m2k. / Thickness: 50mm. / Width: cut to suit rafters. / Installation: Continuous with roof insulation, no gaps, to avoid cold bridging. Friction fit between rafters.
Contractors choice
-
Insulation to eaves (flexible) to fill gaps
Woodfibre off-cuts from EWI/ IWI etc. / Installation: Apply to any gaps between wall plate/ top of wall and rigid insulation to ensure continuity and avoid air movement.
Unger. / Product: Diffutherm. / www.unger-diffutherm.de
-
Protected ventilation path from loft space (required only where
polycarbonate sheeting - equivalent to 10mm continuous ventilation gap
Contractors choice
-
Gutter System
Profile: As drawing. / Gauge: 1.2mm minimum. / Joining : Joins to be avoided where possible. If required must be fully welded and tested. Could be glued and blind riveted subject to approval. / Size: Contractor's choice - to suit existing roof dimensions and cover depth of external wall insulation. / Ensure provides adequate capacity for rainwater discharge from roof. / Finish As Delivered: Self Finished Stainless Steel Grade 304. / Setting Out : To falls. / Fasteners : As manufacturer's recommendations. / Accessories: Welded stop ends. / Testing: Test on completion.
Contractors choice
