EWI to clipped eaves with room in roof. [Version ID #62]
Detail summary

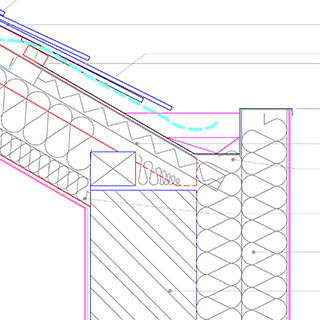

External wall insulation to a clipped eave detail, where roof insulation is fitted between the roof rafters to form a pitched internal ceiling in roof.
Technical description
Installation of new EWI, cut to fit eaves insulation and form gutter parapet where insulation to roof installed to rafters. New membranes.
Parts list
-
Breather Membrane/ Roof-underlay
Installation : Sealed to phenolic and dressed to drainage point at the end of each run of guttering to allow water to exit construction.
Manufacturer : Green Building Store Product reference : Solitex UM
-
Insulation Boards Or Batts Fitted Between Rafters
Formaldehyde Free Glass mineral wool semi rigid batts friction fitted between rafters.
Thermal Conductivity : 0.032W/mK
GWP : 0
Thickness : 35 mm less than rafter depth.
Width: To suit rafter spacing.
Manufacturer : Knauf
Product Reference : DriTherm Cavity Slabs
Web : www.knaufinsulation.co.uk
-
Insulated Dry-Lining Board
Type : Phenolic foam backed plasterboard
Thermal Conductivity : 0.020W/mK
GWP : <5
Insulation thickness : As required to meet target U-value (80mm where 35-75mm mineral wool insulation, 60mm where 75- 100mm mineral wool insulation, 50mm where 100mm + mineral wool insulation).
Plasterboard Thickness : 12.5mm
Vapour Control : Integral Vapour Control Layer - ensure all joints between sheets detailed and taped to minimise vapour transmission using vapour-tight tape.
Manufacturer : Kingspan Insulation Ltd Product reference : Kooltherm® K18 Insulated Plasterboard Web : www.kingspaninsulation.co.uk
