EWI perimeter+sub-floor insulation with controlled ventilation [Version ID #43]
Detail summary
EWI detail for perimeter insulation, and sub-floor insulation for a suspended timber floor, with a controlled ventilation inlet for air inlet and extract for seasonal temperature control.
Technical description

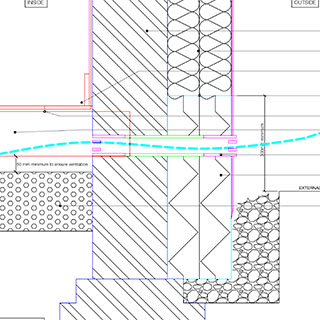

Section detail. EWI to perimeter with controlled ventilation.
- Woodfibre external wall insulation junction with 400 - 200mm external perimeter insulation suitable for below ground use + drainage layer.
- Sub-floor insulation using lightweight aggregate insulation
-Controlled ventilation inlet to below sealed timber ground floor
Parts list
No parts have been included in this revision of the detail.
Revisions
-
Admin - 2015-04-29 11:55:34
EW01 and DP02 and DP04 parts list contacts updated.DWG uploaded.
| -
Admin - 2015-03-27 16:31:19
Preview image and .pdf file updated.
| -
Admin - 2015-03-27 12:48:14
Parts list formatting- codes and nomenclature changed so concurrent with drawing.
| -
Admin - 2015-03-24 10:43:56
General re-formatting. Introduction expanded and revised. technical description updated with approved documents and additional notes. Parts list updated with supplier and additional parts: [FL03] granular backfill and paving slab.
| -
Admin - 2015-03-13 10:14:34
Introduction, technical description expanded. BS and Approved doc details added. Parts list added.
| -
Admin - 2015-02-27 16:05:46 [Displayed version]
Version 1
|
