EWI to below ground with plinth and periscopic ventilation [Version ID #39]
Detail summary
EWI to below ground floor level with a detail for a periscopic vent installed through the EWI to ventilate a basement or cellar.
Technical description

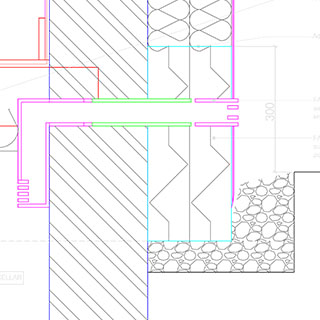

Section detail.EWI to below ground level showing:
- Junction of Woodfibre EWI system to 400 - 200mm external perimeter insulation suitable for below ground use + drainage layer.
-Periscopic air ventilation to below ground under suspended timber floor.
-Insulation to suspended ground floor to depth of rafters
