EWI Perimeter insulation to footings [Version ID #36]
Detail summary
Perimeter insulation detail for EWI down to below ground level. Detail shows junction between EWI and solid perimeter insulation for below ground use, providing 600mm maximum insulation below the depth of the internal floor level.
Technical description

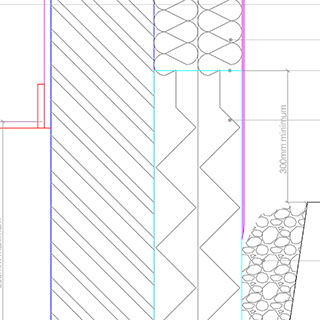

Section detail. EWI detail junction at ground level. Continuous to avoid thermal bridging.
- Perimeter insulation suitable for below ground use and drainage layer.
Parts list
No parts have been included in this revision of the detail.
Revisions
-
Admin - 2015-04-29 11:32:33
General formatting changes and DWG file uploaded.
| -
Admin - 2015-03-27 16:25:51
Preview image and .pdf file updated.
| -
Admin - 2015-03-23 16:35:09
General re-formatting. Parts list updated with links and suppliers details.
| -
Admin - 2015-03-12 16:51:53
Version 4. Parts list updated
| -
Admin - 2015-03-12 16:50:25
Version 4. Parts list updated
| -
Admin - 2015-03-12 16:42:04
Technical description updated and expanded. BS and Approved doc information added. Parts list added.
| -
Admin - 2015-02-27 15:14:59 [Displayed version]
version 1
|
