Roof insulation at increased depth rafters- VP membrane [Version ID #89]
Detail summary
Insulation detail where existing rafters are extended to allow greater depth of insulation. Use only where suitable vapour-permeable roofing membrane is present (check brand and sd value).
Technical description

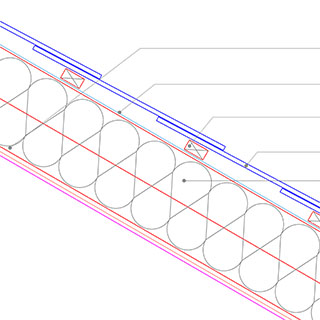

Section detail. Roof insulation to existing room-in-roof with no existing sarking or vapour permeable membrane present.
Removal of existing ceiling and finishes (set aside for re-use), remove existing light fittings and set aside for re-use. Remove any existing timber mouldings. Check roofing membrane before installation of insulation.
Parts list
-
Increased depth to rafters
C16 strength class, FSC certified timber to increase existing rafters to 250mm. Fixed to existing rafters at existing centres.
Contractors choice.
-
Insulation Boards Or Batts Fitted Between Rafters
Woodfibre batts, friction fitted between rafters. \ Thickness 250mm. Width to suit rafter spacing. \ Thermal conductivity: 0.40W/m2K. GWP 0.
Unger \ www.unger-diffutherm.de \ Reference: UdiFLEX
-
Single layer plasterboard backings (nail fix) and plaster
Vapour check plasterboard 12.5mm thickness tapered edge. Joints taped. \ With 2-3mm gypsum plaster coat over applied in single coat, smooth finish
Contractors choice
Revisions
-
Admin - 2015-04-30 10:55:29
DWG uploaded. General formatting work to parts list.
| -
Admin - 2015-03-30 11:40:44
Preview image and detail pdf updated. Title amended to match drawing.
| -
Admin - 2015-03-28 18:04:39
Intelligent membrane amended in parts list.
| -
Admin - 2015-03-19 13:28:25
Version 2 -Title updated. Errors is introduction removed.
| -
Admin - 2015-03-19 13:27:48
Title updated. Errors is introduction removed.
| -
Admin - 2015-03-18 10:36:36
Version 2- Introduction expanded with additional information. Technical description expanded with BS codeas an approved doc links. Parts list codes and manufacturers links added.
| -
Admin - 2015-03-04 14:26:13 [Displayed version]
Version 2- preview image revised.
| -
Admin - 2015-03-04 14:20:27
First version
|
