Roof insulation at increased depth rafters [Version ID #88]
Detail summary
Insulation detail where existing rafters are extended to allow greater depth of insulation. Use only where suitable vapour-permeable roofing membrane is present (check brand and sd value).
Technical description

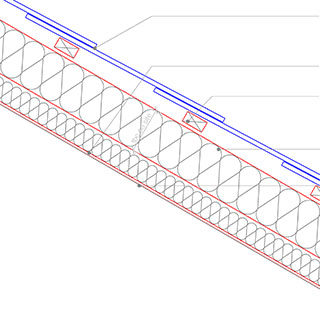

Section detail. Roof insulation to existing room-in-roof with no existing sarking or vapour permeable membrane present.
Removal of existing ceiling and finishes (set aside for re-use), remove existing light fittings and set aside for re-use. Remove any existing timber mouldings. Check roofing membrane before installation of insulation.
Parts list
-
Increased depth to rafters
C16 strength class, FSC certified timber to increase existing rafters to 250mm. Fixed to existing rafters at existing centres.
Contractors choice.
-
Insulation Boards Or Batts Fitted Between Rafters
Woodfibre batts, friction fitted between rafters. \ Thickness 250mm. Width to suit rafter spacing. \ Thermal conductivity: 0.40W/m2K. GWP 0.
Unger \ www.unger-diffutherm.de \ Reference: UdiFLEX
-
Single layer plasterboard backings (nail fix) and plaster
Vapour check plasterboard 12.5mm thickness tapered edge. Joints taped. \ With 2-3mm gypsum plaster coat over applied in single coat, smooth finish
Contractors choice
