EWI window to eaves with soffit [Version ID #69]
Detail summary

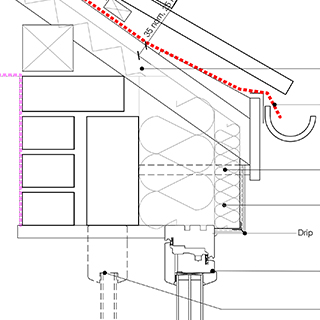

Detail for new EWI to join to overhanging eaves insulation above an existing window directly below the existing soffit.
Technical description
EWI junction detail to an existing soffit with an existing window (to be replaced) below eaves. Window replacement with triple glazed window with new timber frame.
Parts list
-
Loose laid loft insulation - Knauf Earthwool loft roll 40
Flexible, formaldehyde-free, glass mineral wool. 85% (minimum) recycled content to BS EN ISO 14021. \ Installation: Insulation cover should be even and continuous to eaves. Ensure insulation meets any eaves insulation and/or internal wall insulation to prevent cold bridge at eaves without blocking any ventilation paths required to loft space/ roof space.
Knauf. \ Reference: Earthwool loft roll 40
-
Insulation to Eaves (rigid)
Phenolic foam. \ Thickness: 50mm. Width: cut to suit rafters. Length: 750mm PLUS distance to eaves board OR 200mm (whichever is smaller). \ Thermal conductivity: 0.023W/m2k. \ Installation: Continuous with roof insulation, no gaps, to avoid cold bridging. Friction fit between rafters from inside loft, being careful not to damage existing roof membrane or structure or block existing ventilation paths.
Contractors choice
-
Timber frame, triple-glazed windows
Eco-Contract Ultra Outward Opening Casement Windows.\ Thermal Performance (overall u-value) : 0.79W/m2K.\ Air-tight Size: As schematic.\ Opening Pattern/ Configuration : As existing (unless otherwise stated on schematic).\ Sash/Frame Material: FSC 100% Redwood.\ Drip Rail : Aluminium. \ Finish - Interior: Factory finished paint/varnish system.\ Finish - Exterior: Factory finished paint/varnish system. \ Glazing Unit : Triple, Argon Fill, 44mm. \ Glazing Type: as standard triple glazed unless stated: Light transmission : 72%. \ Solar factor (g): 52%. \ Handle Type: Manufacturer's standard, factory fitted. \ Security: Secured by Design.\ Accessories: Egress Hinges and Child Safety Restrictors. \ Guarantees: Manufacturer's standard.
Manufacturer : Green Building Store. \ www.greenbuildingstore.co.uk \ Tel : +44 (0)1484 461705. \ Reference : Eco-Contract Ultra Outward Opening Casement Windows
-
External Wall Insulation 200mm Woodfibre
For use on solid and hard to treat cavity walls. \ Target u-value of: 0.2W/m2k.
Contacts: Contractors choice.
