EWI to clipped eaves [Version ID #33]
Detail summary

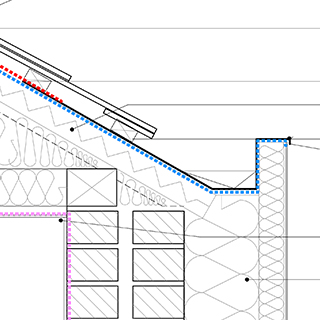

Detail for EWI over existing clipped eaves, with a junction detail for new loft and eaves insulation, and also including a new gutter detail for drainage over EWI
Technical description
External wall insulation system installed up to existing eaves to join to new insulation loft and under existing roof. Installation of new breathable membranes and stainless steel gutter to eaves.
Parts list
No parts have been included in this revision of the detail.
Revisions
-
Admin - 2015-11-03 16:30:31
Edited the notes
| -
Admin - 2015-04-29 09:17:25
DWG file updated. Back to earth contact details added for EWI. Formatting changes to Parts list
| -
Admin - 2015-03-27 16:12:16
Preview image and .pdf file updated.
| -
Admin - 2015-03-27 11:19:19
Parts list updated so concurrent with detail drawing. DP03 added to parts list.
| -
Admin - 2015-03-27 11:14:12
Parts list updated so concurrent with detail drawing. DP03 added to parts list.
| -
Admin - 2015-03-23 16:01:08
General formatting and error reduction.
| -
Admin - 2015-03-23 15:02:23
Parts list updated- loft insulation added. General formatting and error removal.
| -
Admin - 2015-03-23 12:01:43
Introduction/summary updated. Technical description revised and updated with British Standards and Approved docs. Links added. Parts list updated: reformatted and links added.
| -
Admin - 2015-03-23 11:59:19
Introduction/summary updated. Technical description revised and updated with British Standards and Approved docs. Links added. Parts list updated: reformatted and links added.
| -
Admin - 2015-03-23 11:58:52
Introduction/summary updated. Technical description revised and updated with British Standards and Approved docs. Links added. Parts list updated: reformatted and links added.
| -
Admin - 2015-03-13 18:00:06
Updated with additional titles and codes. Installation sequence added.
| -
Admin - 2015-03-12 12:10:40
Version 6- Title, description and technical description updated and expanded. BS and Approved doc information added. Parts list added.
| -
Admin - 2015-03-03 11:26:17
Preview file updated
| -
Admin - 2015-02-27 12:48:00
Preview image updated
| -
Admin - 2015-02-27 12:47:23 [Displayed version]
Preview image updated
| -
Admin - 2015-02-27 12:14:52
version 2- .dwg file updated
| -
Admin - 2015-02-26 14:15:27
First version
|
