EWI around meter box [Version ID #199]
Detail summary
EWI detail around meter box. This detail presumes the application of IWI internally at a future date to prevent cold bridging, but does not require the installation of both external and internal insulation at the same time.
This detail also presumes no ground works are to be undertaken to provide perimeter insulation to the building, but recommends insulating the internal floor where possible to mitigate heat loss and cold bridging.
Technical description

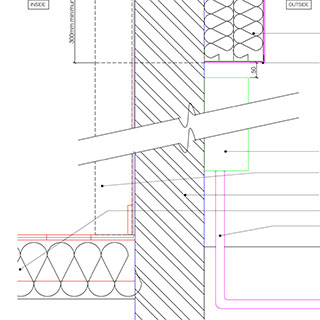

Section detail. EWI installed around existing meter box at perimeter. Internal floor to be insulated as part of works and potential for internal wall insulation to prevent cold bridging. No ground works or excavation within given distance of gas pipe as shown on drawing.
SUGGESTED INSTALLATION SEQUENCE:
1.) Attach door frame to box and fix in place and tape. 2.) Fix EWI. 3.) Render. 4.) Installation of internal floor insulation as required.
REFERENCE SPECIFICATION:
Care should be taken to ensure air-tightness. Seal all service penetrations through EWI and existing wall. Lap and tape all membranes around edges of EWI system.
All insulation to be continuous to avoid thermal bridging.
Preparation of external wall: Remove any existing loose material and prepare in accordance with manufacturer's requirements.
Any alterations to drainage and other fixtures, or work to prepare the substrate, to be agreed with contract administrator prior to work being undertaken. Prior to start on site inspect the form and condition of the structural substrate; institute repairs and/ or additional works necessary to make the substrate suitable to receive EWI system.
Parts list
-
EWI (Woodfibre) System,Rendered Finish [EW01]
Composite woodfibre board. 100mm UdiTherm SK back board, 100mm Diffutherm NF (T&G, renderable) top board. \ Fixed mechanically to substrate in accordance with manufacturers recommendations. \ Base Coat - levelling on substrate: 90% contact required around edge of boards between board and substrate to prevent thermal bypass. If substrate is very uneven, use base-coat material around edge of board to achieve contact. \ Thermal conductivity: 0.045W/m2K. GWP 0.
Unger \ www.unger-diffutherm.de \ Reference: UdiFRONT. \ Render: UDI Perl.
-
EWI (Woodfibre) accessories [EW01]
Base plinth to exposed insulation edge.
As EWI manufacturer.
-
Woodfibre Insulation Between Floor Joists [FL01]
Woodfibre Insulation. \ Thickness 200mm. \ Friction fit between joists to ensure air-tightness- cut batts approx 20mm wider than opening between joists. Supported by Polyester webbing drawn underneath insulation at approx 600mm centres, fixed to joists.
Unger \ www.unger-diffutherm.de \ Reference: UdiFLEX
Revisions
-
Admin - 2015-04-29 13:57:55
Parts list contact details for FL01 and EW01 amended to include Back to Earth contact details. DWG file uploaded.
| -
Admin - 2015-03-27 16:45:17
Preview image and .pdf file updated.
| -
Admin - 2015-03-24 17:49:31
General formatting. Approved doc links added in technical description. Parts list updated with suppliers links.
| -
Admin - 2015-03-13 14:28:41
Technical description updated with information for meter boxes.
| -
Admin - 2015-03-13 14:09:49 [Displayed version]
Title updated. Technical description expanded. Parts list added.
| -
Admin - 2015-02-27 17:35:23
Version 1
|
