Ground floor ventilation to insulated floor [Version ID #96]
Detail summary
Required where existing air-bricks to sub-floor void will be blocked by floor insulation works. Periscopic vent should ensure continued clear air-path to sub-floor, to ensure adequate ventilation.
Technical description

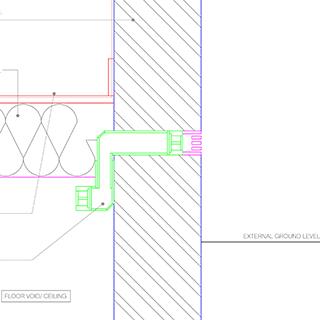

Section detail. Ventilation to perimeter of floor insulation. Existing air-bricks blocked by floor insulation works.
Parts list
-
Wall Ventilator
Plastics air brick, colour to match existing finishes, cranked sleeve to suit and wall ventilator. Re-use existing airbricks where possible. As existing brick/blockwork. Outer face flush with wall face. \ Spaced at max. 2m centres to provide 1500mm2 of clear opening per 1m run of external wall.
Contractors choice.
-
Skirtings and Wall/Floor Junctions
Standard decorators caulk between skirting and wall. Draughtex neoprene strips or timber fillet/ mastic seal between skirting and floor. Seal all junctions
Unger \ www.unger-diffutherm.de \ Reference: UdiFLEX
-
Woodfibre Insulation Between Floor Joists
Woodfibre Insulation. \ Thickness 200mm. \ Friction fit between joists to ensure air-tightness- cut batts approx 20mm wider than opening between joists. Supported by Polyester webbing drawn underneath insulation at approx 600mm centres, fixed to joists.
