Perimeter insulation for solid floor. [Version ID #95]
Detail summary
Detail for stand alone, perimeter insulation to edge of ground floor on outer face of external wall. Plinth detail for top of insulation with cill.
Technical description

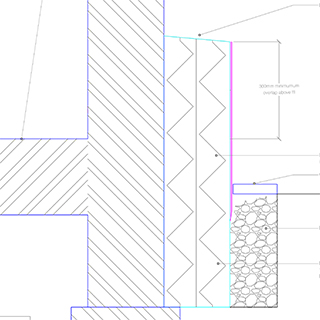

Section detail. Perimeter floor insulation for solid floor with perimeter/plinth insulation.
Parts list
-
External Perimeter Floor Insulation
Extruded Polystyrene (XPS) suitable for below ground conditions and for application of render. \ Thickness as external wall insulation. Depth: 600mm below internal floor level or to footings. Tight butt joints. \ Thermal conductivity: 0.033W/m2K. GWP<5.
BASF \ http://www.plasticsportal.net/wa/plasticsEU~en_GB/portal/show/content/literature/styrodur \ Reference: Styrodur 2800C.
-
Proprietary Render For External Wall Insulation System
To match render to external insulation if elsewhere on property.
As EWI insulation system manufacturer.
-
Sill To External Insulation
Self-finished aluminium to suit 200mm insulation. Smooth finish.
Contractors choice
-
Lightweight Aggregate Insulation drainage layer
Lightweight recycled glass aggregate. Depth: as perimeter insulation. width 200mm. \ Thermal conductivity: 0.08W/m2K.
Misapor (technopor or glapor as alternatives) \ www.misapor.ch \ MISAPOR
-
Concrete Flag Paving over drainage layer
Use reclaimed paving where possible. Natural finish to match existing where present. Smooth. Size: to cover drainage layer.
Contractors choice
Revisions
-
Admin - 2015-04-30 13:57:50
PDF updated to match dwg file
| -
Admin - 2015-04-30 11:15:04
Reformatting of [FL04] contact details on parts list. DWG file uploaded.
| -
Admin - 2015-03-30 11:14:34
Preview image and pdf detail file updated.
| -
Admin - 2015-03-26 13:59:20
General re-formatting. Introduction updated. Technical description updated with approved document links and additional notes. Parts list updated with suppliers links.
| -
Admin - 2015-03-17 10:57:25
Version 2. Introduction expanded. Technical description updated and expanded with BS codes and relevant approved docs. Parts list updated with relevant codes.
| -
Admin - 2015-03-04 16:29:27 [Displayed version]
First version
|
