Floor insulation to cover joists [Version ID #94]

Author details

Original Author:Admin Organisation:

Detail summary

Floor insulation detail for shallow/thin joists, with rigid insulation beneath to cover joists and improve airtightness.

Technical description

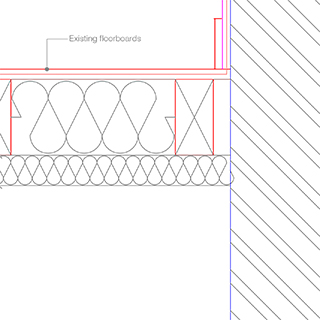

Section detail. Floor insulation for suspended timber floor. Insulation between and covering joists.

Preparation: Inspect sub-floor and timbers for signs of damp and rot. Before starting work carry out a survey of any structual timbers, particularly those which enter external walls (e.g. floor joists). Record current condition of timbers and moisture content for future reference.

Remove any organic matter from sub-floor and floor void. Ensure all existing air-bricks are unobstructed with clear ventilation path

Parts list

  • Rigid woodfibre insulation fixed across joist.

    Woodfibre insulation. Thickness: to create total 200mm insulation thickness (including woodfibre between joists). Thermal conductivity: .004W/m2K. GWP 0.

    Unger \ www.unger-diffutherm.de \ UdiDiffutherm

  • Woodfibre Insulation Between Suspended Ground Floor Joists

    Flexible woodfibre insulation. \ Depth TBC on site based on depth of existing joist. \ Friction fit between joists to ensure air-tightness (batts cut approx 20mm wider than opening between joists.) \ Thermal conductivity: .004W/m2K. GWP 0.

    Unger \ www.unger-diffutherm.de \ UdiFLEX

  • Seal between floorboards- existing ground floor.

    Draught-proof and seal all timber floors to ensure no air-leaks

    Draughtex. \ www.draughtex.co.uk \ Reference: Draughtex Neoprene Strips

  • Single-sided air seal tape

    Tape for junctions critical to air-tightness. 60mm (typical). \ Accesssories: ORCON F sealant and TESCON PRIMER RP (for use on rough/old surfaces to assist adhesion)

    Pro Clima \ http://www.greenbuildingstore.co.uk/page--pro-clima-airtightness-tapes-options.html \ TESCON VANA/ TESCON PROFIL (2 release tapes)
