Insulation to eaves(internal install) junction with wall insulat [Version ID #83]
Detail summary
Insulation designed to deal with potential cold bridge at eaves - where loft or roof insulation meets cavity, or other wall, insulation. Ventilation gap of 35mm provided over eaves ventilation.
Technical description

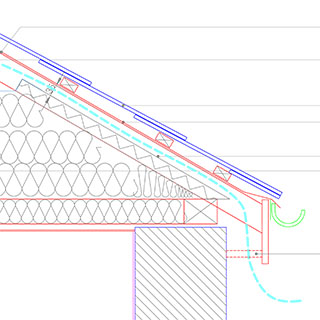

Section detail. Roof & Loft insulation. To eaves. Installed internally at junction with wall insulation.
Loft insulation increased to 400mm depth - recycled formaldehyde free glass fibre loft roll with breather membrane topping to reduce thermal bypass. In cases of existing insulation: inspect for damage, leave in-situ if acceptable conditiion and overlay with new insulation.
Installation: Roll back existing loft insulation to reveal junction between ceiling and roof. Remove any debris. Ensure gap between rafters is clear to either eaves board or 200mm beyond outer edge of wall (where no eaves board), whichever is the smaller. Glue battens to upper surface of the cut insulation boards 100mm in from each edge. On leading edge of the slab taper batten thickness to minimise risk of obstruction on installation. Once glue has set, push slabs into the gap over the top of the sole plate up to the eaves board or 200mm past whichever is the smaller. Reinstate loft insulation to underside of rigid insulation.
Parts list
-
Loose laid loft insulation
Flexible formaldehyde free glass mineral wool. \ 85% (minimum) to BS EN ISO 14021. \ Thermal Conductivity : 0.040 W/mK. \ GWP 0. \ Insulation cover should be even and continuous, right to the eaves. Ensure meets any eaves insulation and/or internal wall insulation to prevent cold bridge at eaves without blocking any ventilation paths required to loft space/ roof space.
Knauf \ Reference: Knauf Earthwool loft roll 40
-
Breather Membrane/ wind-tight layer
Membrane, laid over top of loft insulation to prevent thermal bypass - joints to be lapped and taped.
Tyvek \ http://construction.tyvek.co.uk/Tyvek_Construction/en_GB/products/wall/housewrap.html \ Reference: Tyvek Housewrap
-
Insulation to Eaves (rigid)
Phenolic foam. \ 50mm thickness, cut to suit rafters. Length: 750mm PLUS distance to eaves board or 200mm (whichever smallest). \ Thermal conductivity: 0.023W/m2k.
Contractors choice
