IWI to retained window with insulated reveal board [Version ID #81]
Detail summary
IWI detail for perimeter IWI to an existing window to be retained in a facade with a thin jamb profile, requiring a thin reveal board detail to provide continuous thermal envelope.
Technical description

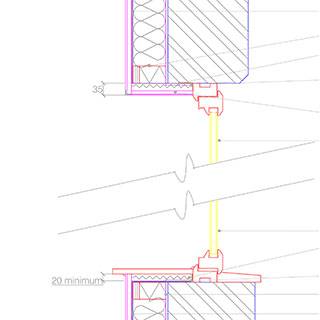

Section detail. IWI to flush eaves with retained window, thin jamb.
Preparation: Cills and framing : Remove existing internal cills and framing to window. Plaster : Where existing plaster is gypsum-based, or where space is required, remove existing plaster finish.
Parts list
-
Insulated Dry-Lining Board to window jambs and head
Phenolic Foam Thermal Plasterboard with integral vapour control layer (plasterboard thickness: 12mm, insulation: 17mm thickness). Tapered edge. \ U-value: 0.21W/m2k. GWP<5. \ Adhesive scored bonding coat to ensure no air-gap to rear of board. Taped and filled joints. Prepared for plaster skim coat finish.
Kingspan Insulation Ltd \ Kooltherm® K17 Insulated Plasterboard
-
Rigid insulation below cill
Rigid insulation board. Thickness: 15-24mm (to suit window frame/ opening). \ U-value: 0.023W/m2k
Kingspan Insulation Ltd \ Kooltherm® K3 Floorboard
-
Softwood Window Board to Sill
Subject to contractor. Half-round edge. European redwood. Class 2 to BS 1186-3. Natural finish. No preservative treatment. FSC certified. Fixed with lost nail heads at 30mm centres.
Contractor choice.
-
Internal Wall Insulation System (95mm)
Earthwool Eco batt insulation. Thickness 95mm\ Target u-value: 0.3W/m2k. Thermal conductivity: 0.033W/m2k/ 0.130W/mk. GWP<5. \ Fixing: In accordance with manufacturer's recommendations. Supports: EcoStuds - XPS and OSB uprights.
Knauf \ ThermoShell Internal Wall Insulation System
-
Single-sided air seal tape
Tape for junctions critical to air-tightness. 60mm (typical). \ Accesssories: ORCON F sealant and TESCON PRIMER RP (for use on rough/old surfaces to assist adhesion)
Pro Clima \ http://www.greenbuildingstore.co.uk/page--pro-clima-airtightness-tapes-options.html \ TESCON VANA/ TESCON PROFIL (2 release tapes)
-
Intelligent membrane- Vapour Control Layer
Intelligent breather membrane. \ Fixing: Laps And Edges: Sealed with vapour-tight adhesive tape. At junctions with party/patition walls, lap under insulated plasterboard. At floor and ceiling junctions ensure is appropriately sealed.
Pro-clima \ Intello membrane
Revisions
-
Admin - 2015-04-30 10:13:26
General formatting. DWG file uploaded
| -
Admin - 2015-03-30 12:02:12
Preview image and detail pdf updated.
| -
Admin - 2015-03-29 11:06:17
IW05b "insulated dry-lining board" replaced with "laminate plasterboard
| -
Admin - 2015-03-26 22:49:47
General re-formatting. Introduction expanded. Technical description revised and expanded with Approved documents, links and additonal BS codes. Parts list updated with suppliers links.
| -
Admin - 2015-03-16 16:33:35
Version 2. Introduction, Technical description updated and expanded with BS codes and Approved document information. Parts list updated with relevant codes.
| -
Admin - 2015-03-03 17:21:09 [Displayed version]
First Version
|
