EWI to eaves - flush with window head [Version ID #71]
Detail summary

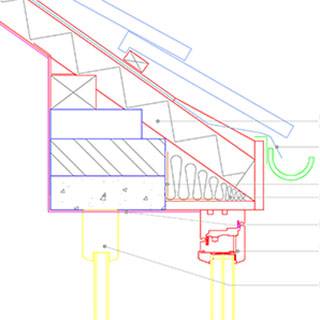

Detail for new EWI to eaves where overhanging eaves are flush with head of an existing window.
Technical description
EWI to eaves with large overhang, existing eaves flush with head of window.
Parts list
-
New Timber frame, triple-glazed windows
Eco-Contract Ultra Outward Opening Casement Windows.\ Thermal Performance (overall u-value) : 0.79W/m2K.\ Air-tight Size: As schematic.\ Opening Pattern/ Configuration : As existing (unless otherwise stated on schematic).\ Sash/Frame Material: FSC 100% Redwood.\ Drip Rail : Aluminium. \ Finish - Interior: Factory finished paint/varnish system.\ Finish - Exterior: Factory finished paint/varnish system. \ Glazing Unit : Triple, Argon Fill, 44mm. \ Glazing Type: as standard triple glazed unless stated: Light transmission : 72%. \ Solar factor (g): 52%. \ Handle Type: Manufacturer's standard, factory fitted. \ Security: Secured by Design.\ Accessories: Egress Hinges and Child Safety Restrictors. \ Guarantees: Manufacturer's standard.
Contacts: Manufacturer: Green Building Store. \ www.greenbuildingstore.co.uk \ Tel: +44 (0)1484 461705. \ Reference: Eco-Contract Ultra Outward Opening Casement Windows
-
External Wall Insulation 200mm Woodfibre
For use on solid and hard to treat cavity walls. \ Target u-value of: 0.2W/m2k.
Contractors choice.
-
Insulation to Eaves (rigid)
Phenolic Foam. / Thermal conductivity: 0.023W/m2k. / Thickness: 50mm. / Width: cut to suit rafters. / Installation: Continuous with roof insulation, no gaps, to avoid cold bridging. Friction fit between rafters.
Contractors choice
-
Breather Membrane/ Roof-underlay
Installation: Sealed to insulation to eaves and dressed to drainage point at the end of each run of guttering to allow water to exit construction.
Green Building Store / Reference: Solitex UM
