EWI to new door- Threshold and Head [Version ID #68]
Detail summary

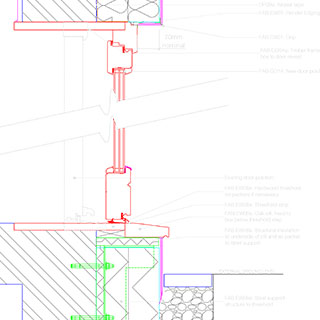

Section detail for EWI around a new door and frame, with a timber frame to the new door reveal.
Technical description
Detail new door to EWI to replace existing. Structural and below ground insulation to below door threshold.
Parts list
-
Structural Insulation beneath door threshold
Structurally improved Polystyrene insulation. \ Thickness as per drawing. Depth as per drawing. Width as per door threshold. \ Thermal conductivity: 0.04W/m2k. \ GWP: <5. \ Joints: tight butt joints
Compacfoam. \ http://www.compacfoam.com/12-what-is-compacfoam.html \ Reference: CompacFoam- 200
-
Rolled Support Steel Angles
65 x 50 x 5 mm rolled steel angle. Hot dip galvanised. \ Spacing at 1/3 points beneath door threshold. \ Mechanically fixed through compacfoam packer to existing masonry. Fixing to suit existing substrate. Top-plate : Top-plate pre-fixed to upper end of angle to take load of threshold through compac foam insulation.
Contractors choice
-
External Wall Insulation: ground level/within splash zone
Extruded Polystyrene (XPS) suitable for below ground conditions and for application of render. \ Thickness: as EWI. Depth: Minimum 300mm below internal floor level. \ Thermal conductivity: 0.033W/m2k. \ GWP: <5. \ Installation : Cut to fit around compact foam and steel supports to door threshold.Tight butt joints
BASF \ http://www.plasticsportal.net/wa/plasticsEU~en_GB/portal/show/content/literature/styrodur \ Reference: Styrodur 2800C.
Revisions
-
Admin - 2015-04-29 10:30:14
.dwg file updated.
| -
Admin - 2015-04-28 12:26:22
.dwg file updated.
| -
Admin - 2015-04-28 12:20:50
.dwg file updated.
| -
Admin - 2015-04-28 12:14:53
.dwg file uploaded.
| -
Admin - 2015-03-31 09:54:05
Granular backfill added to parts list. General error removal.
| -
Admin - 2015-03-27 16:05:00
Preview image and .pdf file updated.
| -
Admin - 2015-03-23 15:43:51
Technical description formatting changes. Parts list updated with links. Softwood boards added to parts list.
| -
Admin - 2015-03-23 15:42:43
Technical description formatting changes. Parts list updated with links. Softwood boards added to parts list.
| -
Admin - 2015-03-12 16:23:42
version 5. Technical description updated with Approved docs and British standards. Parts list updated with codes.
| -
Admin - 2015-03-10 13:48:54
Parts list and intro/technical description updated.
| -
Admin - 2015-03-03 13:58:42 [Displayed version]
Category updated. Parts list added.
| -
Admin - 2015-02-27 12:22:59
Version 2 - .dwg uploaded
| -
Admin - 2015-02-26 17:02:56
Title added and description
|
