EWI over large step in brickwork [Version ID #66]
Detail summary
Detail to show EWI carrying around a single brick step-in on an external wall.
Technical description

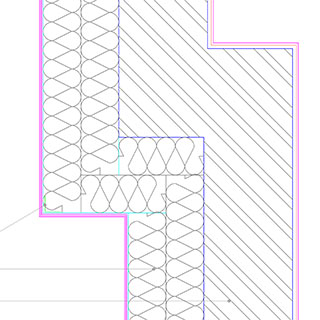

Plan Detail. EWI carrying round brickwork step. Single-brick or equivalent step size. Woodfibre insulation system.
Care should be taken to ensure air-tightness. Seal all service penetrations. Lap and tape all membranes.
All insulation to be continuous to avoid thermal bridging.
Preparation of external wall: Remove any existing loose material and prepare in accordance with manufacturer's requirements.
Any alterations to drainage and other fixtures, or work to prepare the substrate, to be agreed with contract administrator prior to work being undertaken. Prior to start on site submit a report stating form and condition of the structural substrate; giving a schedule of repairs and/ or additional works necessary to make the substrate suitable to receive the system; a schedule of services, fixtures and fittings requiring removal to facilitate installation of the system; and any other information considered.
Parts list
-
External Wall Insulation 200mm Woodfibre
For use on solid and hard to treat cavity walls. \ Target u-value of: 0.2W/m2k.
Contractors choice.
Revisions
-
Admin - 2015-04-29 11:06:41
Parts list updated.
| -
Admin - 2015-04-29 09:00:36
DWG uploaded.
| -
Admin - 2015-04-29 08:59:34
DWG uploaded. Back to earth contact added to EW01 part. Formatting changes.
| -
Admin - 2015-03-31 10:00:59
Preview image and detail pdf updated to latest revision
| -
Admin - 2015-03-23 10:30:45
Introduction revised for clarity, Technical description updated. Parts list re-formatted and updated with links.
| -
Admin - 2015-03-13 17:54:16
Technical description updated. Parts list updated with relevant codes.
| -
Admin - 2015-03-11 17:37:47
Parts list updated.
| -
Admin - 2015-03-11 17:37:05
Parts list updated.
| -
Admin - 2015-03-11 17:36:14
Version 5. Parts list updated with codes.
| -
Admin - 2015-03-11 17:07:26
Preview image and pdf file updated with latest linetype colours and lineweights. Parts list updated.
| -
Admin - 2015-03-05 10:45:42
Technical description updated.
| -
Admin - 2015-03-03 13:20:14 [Displayed version]
Version 2. Original detail removed: information out of date/Superseeded. All details updated/replaced with latest revision.
| -
Admin - 2015-02-26 14:00:26
First version
|
