Existing door with VIPs [Version ID #659]
Detail summary
Pre-existing door with Vacuum Insulated Panels (VIPs) retrofitted to the internal face.
Technical description

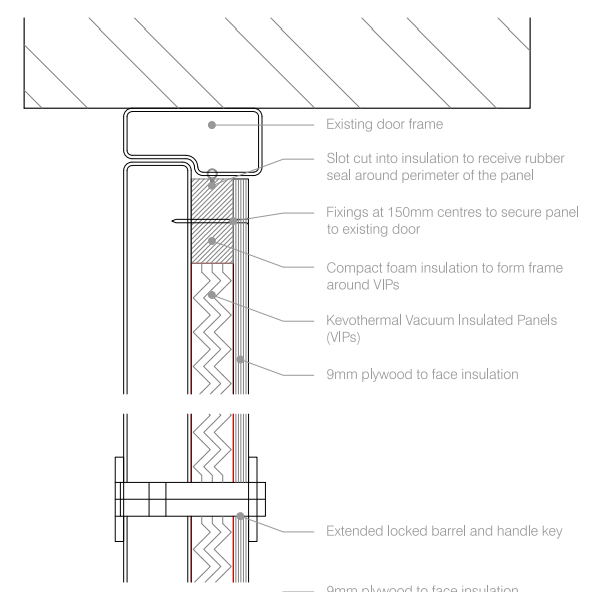

Vacuum Insulated Panels (VIPs) cladded onto the internal face of an existing door. In this instance the existing door is a steel security door however the detail can be replicated easily to suit any kind of door. The panels are protected by a 9mm ply wood sheet and to give a fixing point a perimeter for compact foam is installed between the ply and the existing door.
Parts list
No parts have been included in this revision of the detail.
Revisions
-
Callum Henderson - 2016-06-14 10:36:21
DWG added
| -
Callum Henderson - 2016-06-14 10:00:33 [Displayed version]
Image added
| -
Callum Henderson - 2016-06-14 09:43:32
First Version
|
