EWI to soffit eaves with room in roof [Version ID #65]
Detail summary

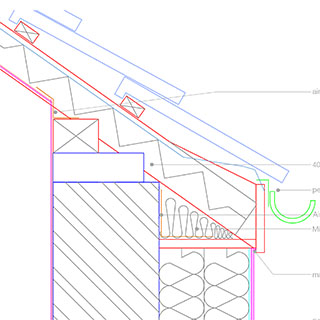

Detail of EWI to existing eaves with soffit and impermeable membrane
Technical description
Parts list
-
Insulation To Eaves (Flexible)
Woodfibre off-cuts from EWI/ IWI etc. \ Applied into any gaps between wall plate/ top of wall/ rigid insulation/ external wall insulation to ensure continuity of insulation and avoid air movement.
Unger \ www.unger-diffutherm.de \ Ref: Diffutherm
-
Insulation to Eaves (rigid)
Phenolic Foam. \ Thermal conductivity: 0.023W/m2k. \ Thickness: 50mm nominal (to maintain 25mm minimum ventilation gap). \ Width: Cut to suit rafters. \ Length: 600mm minimum - to ensure overlap with loft/roof insulation and any wall insulation and avoid thermal bridge. \ Installation: Continuous with roof insulation, no gaps, to avoid cold bridging. Friction fit between rafters.
Contractor's choice
-
Breather Membrane
Accessories: Tyvek 2060B Tape
DuPont Tyvek. \ http://www.dupont.co.uk/products-and-services/construction-materials/tyvek-building-envelope.html \ Ref: Tyvek Supro
-
Over Fascia Eaves Ventilator
Hambleside Danelaw Ltd. \ www.hambleside-danelaw.co.uk \ Ref: HD12000U Universal Over Fascia Ventilator or equivalent
