EWI to lower roof sloping away from external wall [Version ID #49]
Detail summary
Detail for junction of EWI with a lower roof projecting away from a external wall. Drawn to compliment EWI details for lower sloping and flat roofs along external walls.
Technical description

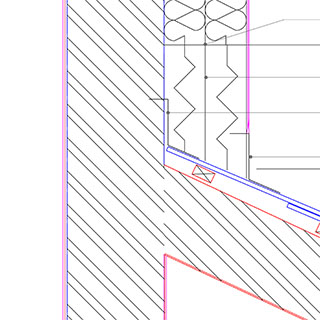

Section detail. EWI junction to existing pitched roof to be retained.
- Junction detail of woodfibre EWI system to Water resistsant EWI system with seal.
-Junction detail of combined EWI system and render to existing roof with appropriate flashing over existing flashing detail.
-No airtightness works to existing ceiling below projecting roof.
Parts list
No parts have been included in this revision of the detail.
Revisions
-
Admin - 2015-04-29 12:13:24
Parts list updated. to include Back to Earth contact details for EW01. BASF contact links provided for insulation at roof abutment [EW01]. general formatting changes. DWG uploaded.
| -
Admin - 2015-03-27 16:35:44
Preview image and .pdf file updated.
| -
Admin - 2015-03-24 12:25:26
General re-formatting. Introduction revised and expanded. Technical description expanded with Approved document links and installation sequence. Parts link suppliers links added.
| -
Admin - 2015-03-13 12:23:22
Introduction and technical description updated. Parts list updated.
| -
Admin - 2015-02-27 16:50:04 [Displayed version]
Version 1
|
