EWI to lower roof sloping along external wall. [Version ID #47]
Detail summary
Detail of junction of EWI to existing roof, either pitched or sloping along the external wall to be insulated. Applicable where existing roof finish is to be retained and perimeter junction of EWI need to be sealed ad flashed along length.
Technical description

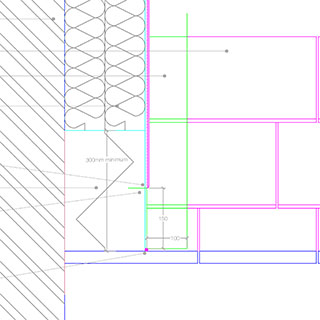

Section detail. EWI to existing roof sloping/pitched.
- Junction detail with EWI where existing roof finish to be retained
- External woodfibre insulation used in conjunction with 400 - 200mm, rigid, external perimeter insulation suitable for use in a splash zone.
-Appropriate cap flashings and soakers to be used alongside mastic detail at junction with roof.
