Insulation to suspended floor, accessible from below. [Version ID #245]
Detail summary
Detail for insulation to a suspended timber floor accessible from beneath to increase thermal efficiency and reduce heat loss.
Target U-Value : 0.2W/m2K
Technical description

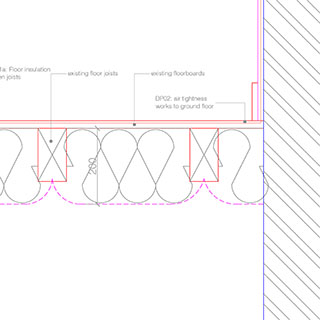

Section detail. Floor insulation between joists with air-tightness works. Ground floor- suspended. No ceiling required. To achieve target U-value of 0.2W/m2k.
SUGGESTED INSTALLATION SEQUENCE:
Before start of works: Inspect any structural timbers, particularly those which enter external walls (e.g. floor joists); Inspect sub-floor, and timbers within for signs of damp and rot. Report immediately if any found. If possible record current condition of timbers and moisture content for future reference. Remove any organic matter from sub-floor and floor void. Ensure all existing air-bricks are unobstructed with clear ventilation path
1.) Inspect floor void for signs of rot/damp and report immediately if found. 2.) Carefully remove obstructions from below floor. 3.) Seal between floor boards and fill gaps. 4.) Friction fit insulation between between floor joists and fix in place. 5.) Install webbing to hold insulation in place.
Please refer to Approved documents: B (fire safety): B1 section 1 (material alterations)/ B2 section 3 (internal fire spread), and Appendix A (material properties). Document A (structural safety) should be referred to when fixing/applying loads to existing floor joists or members. Ensure existing joists meet requirements in Approved document A (structural) before starting works. Refer to Doc L: Section 5 of L1B for dwellings; including all relevant amendments.
Parts list
-
Woodfibre Insulation Between Floor Joists [FL01a]
Woodfibre Insulation. \ Thickness 200mm. \ Friction fit between joists to ensure air-tightness- cut batts approx 20mm wider than opening between joists. Supported by Polyester webbing drawn underneath insulation at approx 600mm centres, fixed to joists.
Unger \ www.unger-diffutherm.de \ Reference: UdiFLEX
-
Seal between floorboards- existing ground floor. [DP02] and [DP0
Draught-proof and seal all timber floors to ensure no air-leaks.
Draughtex. \ www.draughtex.co.uk \ Reference: Draughtex Neoprene Strips
-
Single-sided air seal tape [DP09a]
Tape for junctions critical to air-tightness. 60mm (typical). \ Accesssories: ORCON F sealant and TESCON PRIMER RP (for use on rough/old surfaces to assist adhesion)
Pro Clima \ http://www.greenbuildingstore.co.uk/page--pro-clima-airtightness-tapes-options.html \ TESCON VANA/ TESCON PROFIL (2 release tapes)
