EWI to external corner- standard corner detail junction [Version ID #188]
Detail summary
Standard corner detail for woodfibre EWI to similar system around corner.
Psi value: 0.05194 W/mk
Technical description

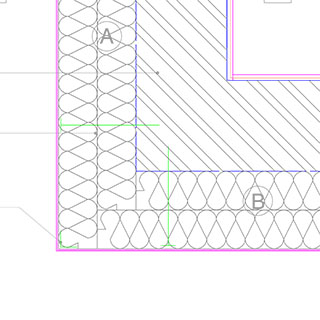

Plan detail. EWI to external corner detail, carrying round with no change in material. Woodfibre external wall insulation system with corner bead for render to carry over corner. Perpendicular boards with butted corner joint.
SUGGESTED INSTALLATION SEQUENCE:
1.) Cut back flexible backing on insulation board, leaving an overlap on board A. 2.)Fix perpendicular insulation board butted up to board B
REFERENCE SPECIFICATION:
Care should be taken to ensure air-tightness. Seal all service penetrations through EWI and existing wall. Lap and tape all membranes around edges of EWI system.
All insulation to be continuous to avoid thermal bridging.
Preparation of external wall: Remove any existing loose material and prepare in accordance with manufacturer's requirements.
Any alterations to drainage and other fixtures, or work to prepare the substrate, to be agreed with contract administrator prior to work being undertaken. Prior to start on site inspect the form and condition of the structural substrate; institute repairs and/ or additional works necessary to make the substrate suitable to receive EWI system.
Parts list
-
External Wall Insulation (Woodfibre), rendered finish [EW01]
For use on solid and hard to treat cavity walls. Composite woodfibre board. UdiTherm SK back board, Diffutherm NF (T&G, renderable) top board. \ Fixed mechanically to substrate in accordance with manufacturers recommendations. \ Base Coat - levelling on substrate: 90% contact required around edge of boards between board and substrate to prevent thermal bypass. If substrate is very uneven, use base-coat material around edge of board to achieve contact. \ Thermal conductivity: 0.045W/m2K. GWP 0.
Unger \ www.unger-diffutherm.de \ Reference: UdiFRONT. \ Render: UDI Perl
