New window to EWI, reduced width due to corner (Plan) [Version ID #140]
Detail summary
Detail for new replacement window, where existing window fitted to an external corner requires a reduced width reveal box.
A variation on the "New window to EWI, retrofit installation" detail where the new window is mounted onto a timber box and installed into a finished EWI installation. This detail modifies the box design to allow for the corner detail shown.
Technical description

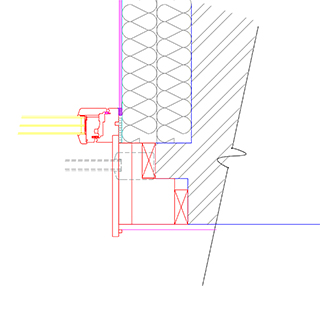

Plan detail. EWI to new replacement window, for retrofit of window after EWI installation, on reduced width box into former window location, in corner. New triple glazed window to replace existing.
Window and box should be installed from outside, with insulation fitted tight up to box and appropriate air-tightness work undertaken as shown on detail drawings.
Care should be taken during the installation to ensure the continuity of insulation and air-tightness at the junction between window, existing wall and external wall insulation.
Parts list
-
External Wall Insulation (Woodfibre) System With Rendered Finish
For use on solid and hard to treat cavity walls. Composite woodfibre board. UdiTherm SK back board, Diffutherm NF (T&G, renderable) top board. \ Fixed mechanically to substrate in accordance with manufacturers recommendations. \ Base Coat - levelling on substrate: 90% contact required around edge of boards between board and substrate to prevent thermal bypass. If substrate is very uneven, use base-coat material around edge of board to achieve contact. \ Thermal conductivity: 0.045W/m2K. GWP 0.
Unger \ www.unger-diffutherm.de \ Reference: UdiFRONT. \ Render: UDI Perl
-
New Timber frame, triple-glazed windows
Eco-Contract Ultra Outward Opening Casement Windows.\ Thermal Performance (overall u-value) : 0.79W/m2K.\ Air-tight. Size: As schematic.\ Opening Pattern/ Configuration : As existing (unless otherwise stated on schematic).\ Sash/Frame Material: FSC 100% Redwood.\ Drip Rail : Aluminium. \ Finish - Interior: Factory finished paint/varnish system.\ Finish - Exterior: Factory finished paint/varnish system. \ Glazing Unit : Triple, Argon Fill, 44mm. \ Glazing Type: as standard triple glazed unless stated: Light transmission : 72%. \ Solar factor (g): 52%. \ Handle Type: Manufacturer's standard, factory fitted. \ Security: Secured by Design.\ Accessories: Egress Hinges and Child Safety Restrictors. \ Guarantees: Manufacturer's standard.
Manufacturer: Green Building Store. \ www.greenbuildingstore.co.uk \ Tel: +44 (0)1484 461705. \ Reference: Eco-Contract Ultra Outward Opening Casement Windows
-
Self-finished Softwood Box to Mount Window into Depth of EW
To fit existing structural opening. Box to be constructed to same outside dimension as window opening. Window box. \ Depth as detail drawing. Inner edge of reveal to protrude 20mm inside the room, beyond the existing plaster face. \ Species : European Redwood. \ Section Sizes: As detail drawing. \ Adhesive to contractor’s specification. Mechanically pre-fixed and glued to window frame to existing masonry : Window reveals to be fixed back to outer leaf of masonry with frame fixings countersunk and plugged, at between 450mm - 600mm centres to suit window size. \ Certification : All timber to be FSC certified.
Contractors choice
