EWI over large step in brickwork
Detail summary
Detail showing woodfibre external wall insulation carried around a large brick projection on an external wall. Designed to ensure a consistent depth of insulation over the whole external wall ensuring a continuous thermal envelope.
Technical description

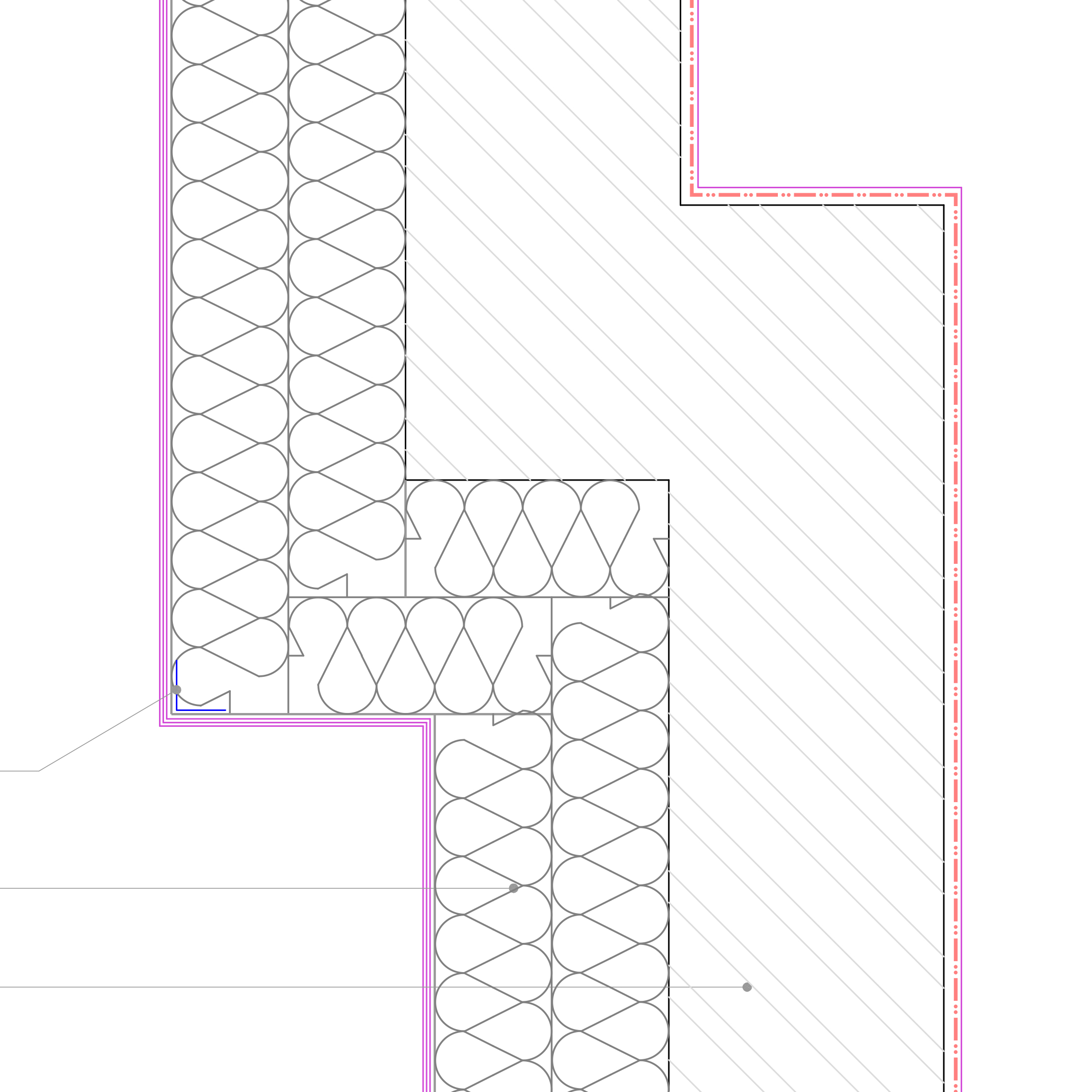

Plan Detail. EWI carrying round brickwork step. Single-brick or larger equivalent projection. Woodfibre insulation system.
Notes:
Care should be taken to ensure air-tightness. Seal all service penetrations. Lap and tape all membranes.
All insulation to be continuous to avoid thermal bridging.
Preparation of external wall: Remove any existing loose material and prepare in accordance with manufacturer's requirements.
Any alterations to drainage and other fixtures, or work to prepare the substrate, to be agreed with contract administrator prior to work being undertaken. Prior to start on site inspect: form and condition of the structural substrate; institute repairs and/ or additional works necessary to make the substrate suitable to receive EWI system.
Parts list
-
EWI (Woodfibre) System With Rendered Finish [EW01]
Composite woodfibre board for use on solid and hard to treat cavity walls.
- Insulation back board: UdiTherm SK.
- Insulation top board: Diffutherm NF (T&G, renderable).
- Thermal conductivity: 0.045W/m2K. GWP 0.
- Base Coat: levelling on substrate: 90% contact required around edge of boards between board and substrate to prevent thermal bypass. If substrate is very uneven, use base-coat material around edge of board to achieve contact.
- Fixing: Fixed mechanically to substrate in accordance with manufacturers recommendations.
- Render/carrier: to manufacturers standard.
- Render: Udi Perl
- Decorative finish: tbc
- System guarantee: 25 years - ECO compliant insurances and guarantees.
- System Certification : ETAG
Unger-Diffutherm. Product Reference: UdiFRONT.
Supplied by: Back To Earth. Tel: 01392 861763
Web: http://www.backtoearth.co.uk/ -
EWI (Woodfibre) accessories [EW01]
Corner reinforcement required for render over external corner.
As EWI manufacturer.
